A 10-inch, stainless steel IP67 industrial all-in-one machine
IPC-S101-IP67-CT
Product profile
Using high performance, low power consumption embedded fanless industrial motherboard, onboard Intel Celeron J4125 2.0GHz main frequency four-core four-thread processor;Design features: SUS304 stainless steel / IP67 dustproof and waterproof / fanless design, energy saving silent / power on / high and low temperature resistance / corrosion wear resistance / durable / pure plane design;
The machine in accordance with NEMA 4 / IP67 dustproof waterproof grade combined with no fan energy-saving silent design, casing with stainless steel SUS304 material, interface all in accordance with IP67 protection level of M12 series aviation plug, make the machine more strong seismic, pressure resistance, durable, high strength dust waterproof, oil prevention and other excellent characteristics, more have used in bad industrial, food industry, maritime and other environment;
10.1 inch 16:10 display ratio, 1280 * 800 high resolution, 300 cd / ㎡ brightness, industrial grade LCD display;
Adopt Taiwan EETI waterproof control scheme, projection capacitive touch screen, support ten-point touch control and normal use in the water drop environment. More intuitive operation under various systems can support non-drive use, high touch accuracy is not easy to mistakenly touch, the material use of tempered glass is more smooth and hard;
DC 12V power supply input (optional DC 9-36V wide voltage input, etc.);
IO interface is rich, can freely connect to external devices, 2 * USB, 1 * RS 232,1 * LAN, 1 * DCIN (support for expanding more interfaces);
Operating system: support MS series W in 7 / Win8 / win10 and Linux and other mainstream operating systems;
Installation method: Support the standard VESA bracket type installation.
Specification parameters
Host parameters | CPU processor | Intel Celeron J4125 2.0GHz Quad-core processor (optional J1900 / J6412, etc.) |
Optional to upgrade the Intel Core I3 / I5 / I7 series |
video card | The Intel ? U HD Graphics 600 core graphics card |
internal storage | DDR 4 4G 2400MHz(Max 8GB) |
caliche | M.2 64G B SSD (Optional other capacity) |
network | 1 * Realtek RT8111E Gigabit network card (optional 2 RJ 45) |
Optional wireless WIFI & BT / 4G |
configuration parameter | special performance | Machine IP67 dustproof and waterproof, corrosion resistance, high temperature resistance, anti-interference, high stability |
Structural material | Machine SUS304 stainless steel material |
Shell color | Stainless steel natural color wire drawing |
design feature | Strong, durable, energy-saving and silent, power-on, all-weather uninterrupted operation |
way to install | Support VESA bracket installation (such as wall-mounted, desktop, standing) |
Display parameters | size | 10.1 inch 16:10 |
resolution ratio | 1280*800 |
luminance | 300 cd / ㎡ (optional 1000 cd / ㎡ brightness in sunlight) |
Other parameters | Contrast: 800:1 (Typ.); Perspective: 85 / 85 / 85 / 85 (Typ.), (CR 10) (left and right up and down) |
Touch parameters | Touch type | EETI waterproof solution capacitive touchscreen (optional resistance or no touchscreen) |
Material structure | Material: G + G; Surface hardness: 6H |
Other parameters | Service life: 50 million; transmission power: 87% |
interface parameters | I/O joggle | 2*USB、1*RS 232、1*LAN、1*DC IN |
Optional interface | RS485 / RS 232 / more interfaces can support expansion |
enviromental parameter | working temperature | 0℃ ~50℃ (Optional-20~ + 70℃ wide operating temperature) |
Storage temperature | -20℃~60℃ |
relative humidity | From 5 to 95%, with no coagulation drops |
dimensions | Appearance size | 300*220*53mm |
installation size | 75 * 75mm (VESA stent mount) |
Power support | direct-current main | DC 12V Power input (optional DC 9-36V, etc.) |
Shipping accessories | standard configuration | 12V 5A adapter + AC power cable + corresponding interface IP67 air plug cable |
operating system |
| Support for mainstream operating systems such as Win10 and Linux |
Quality Assurance |
| 12 month (longer warranty optional) warranty |

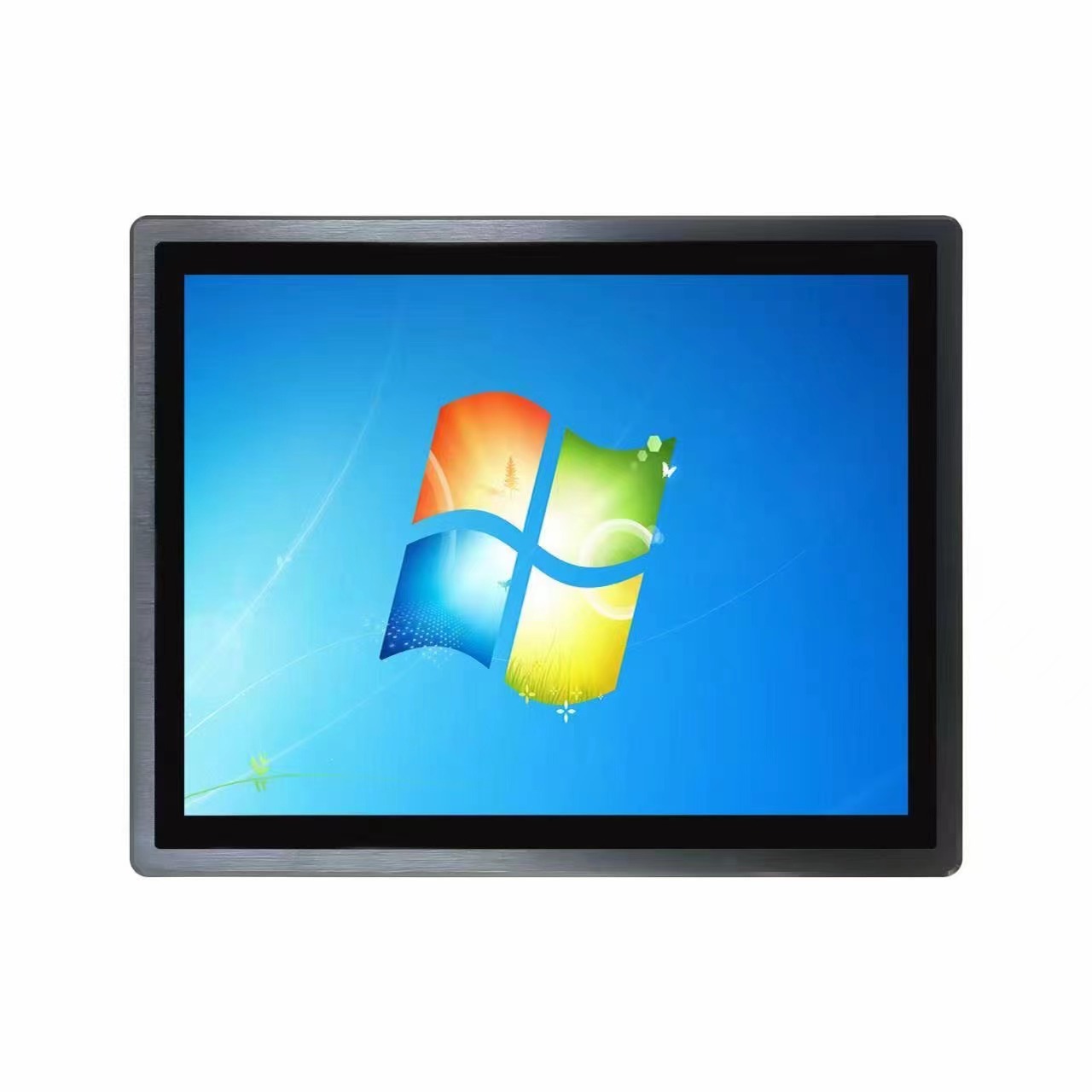

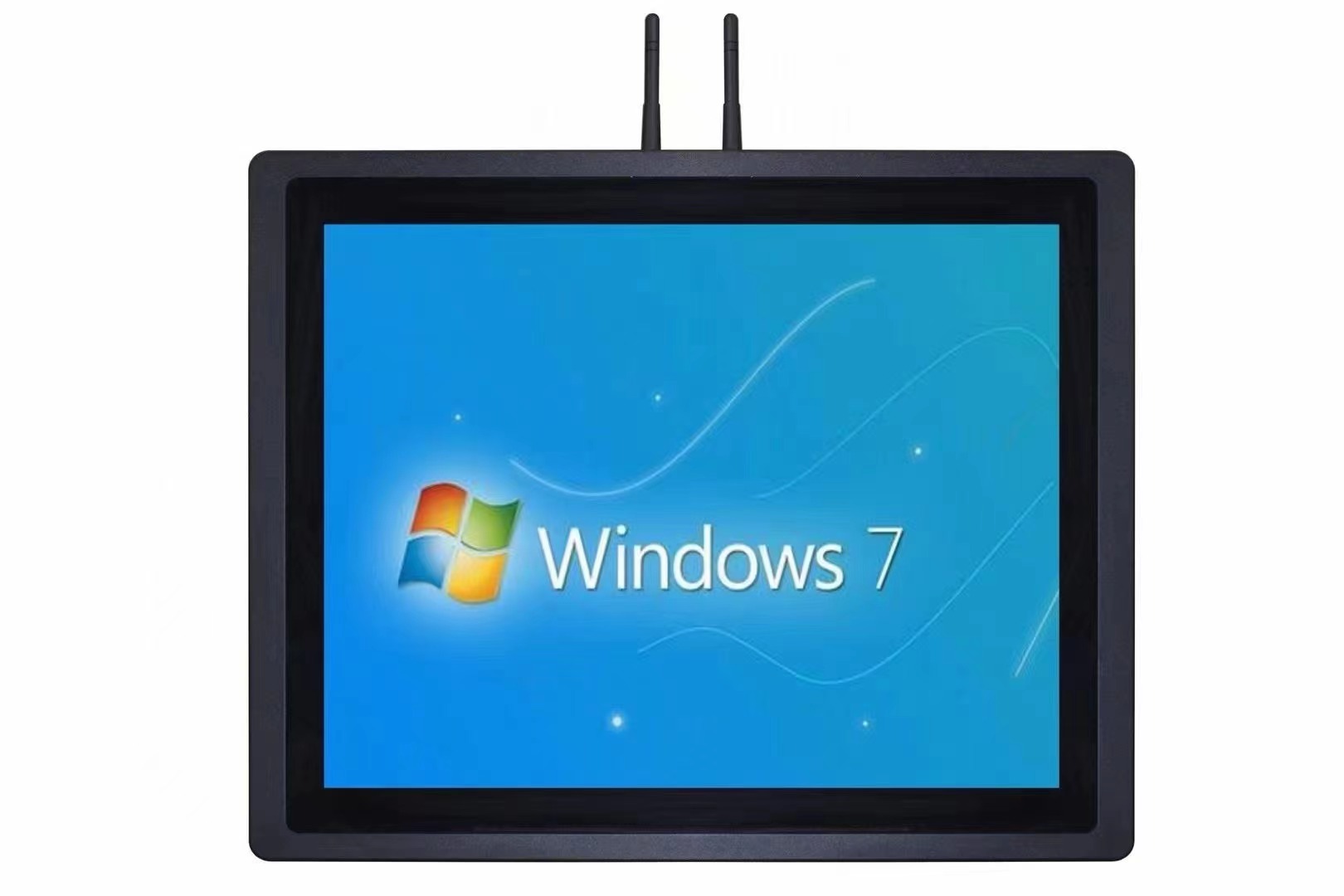

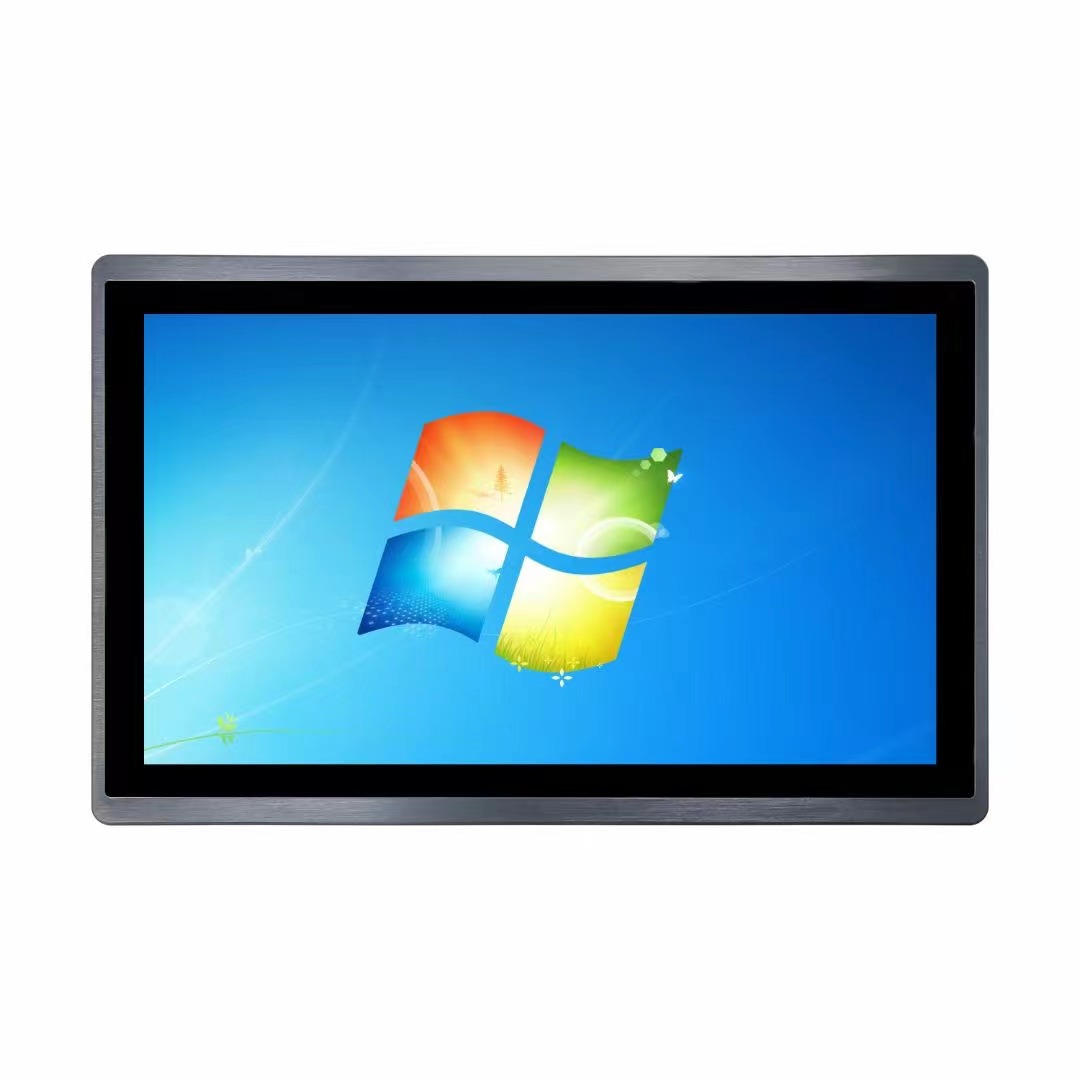

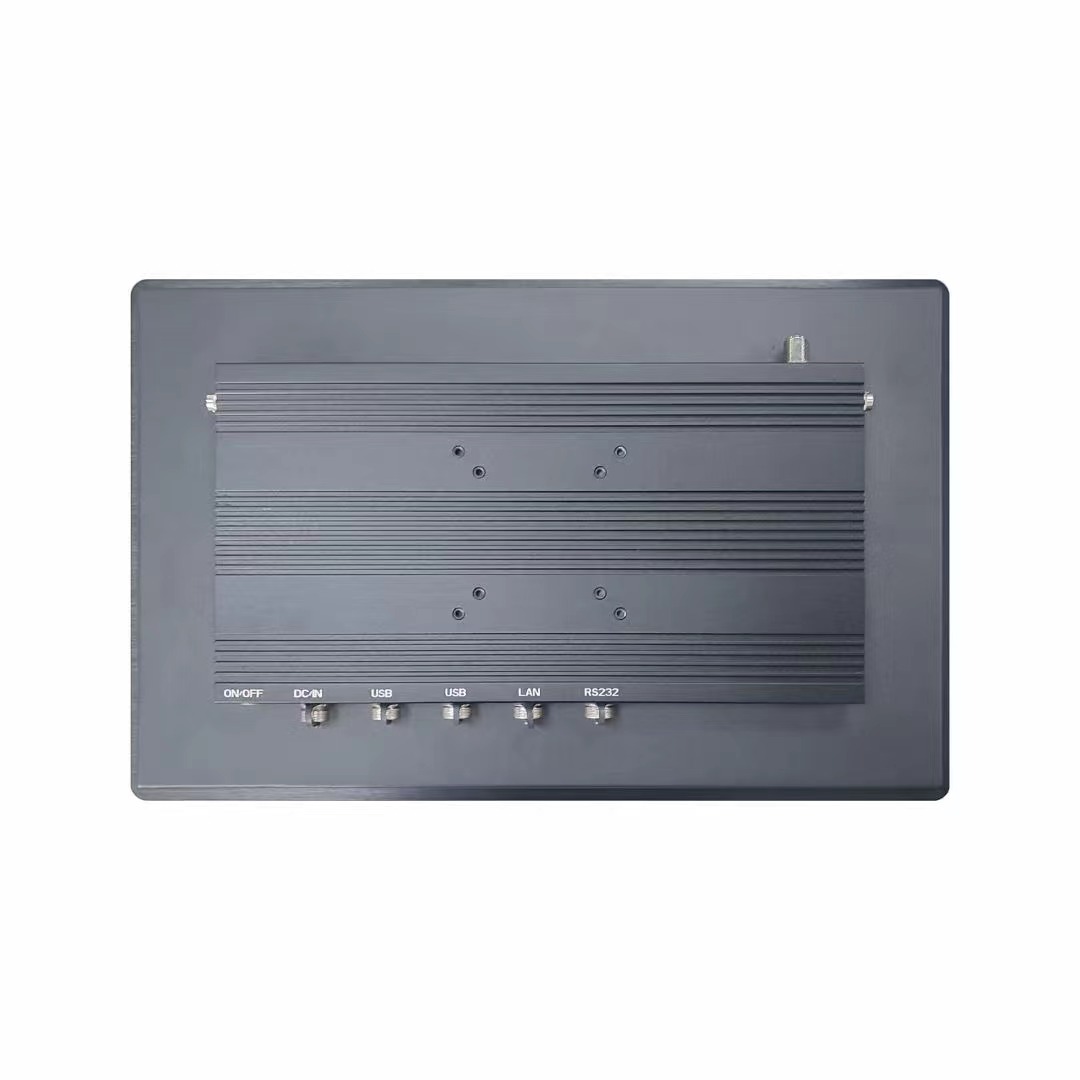

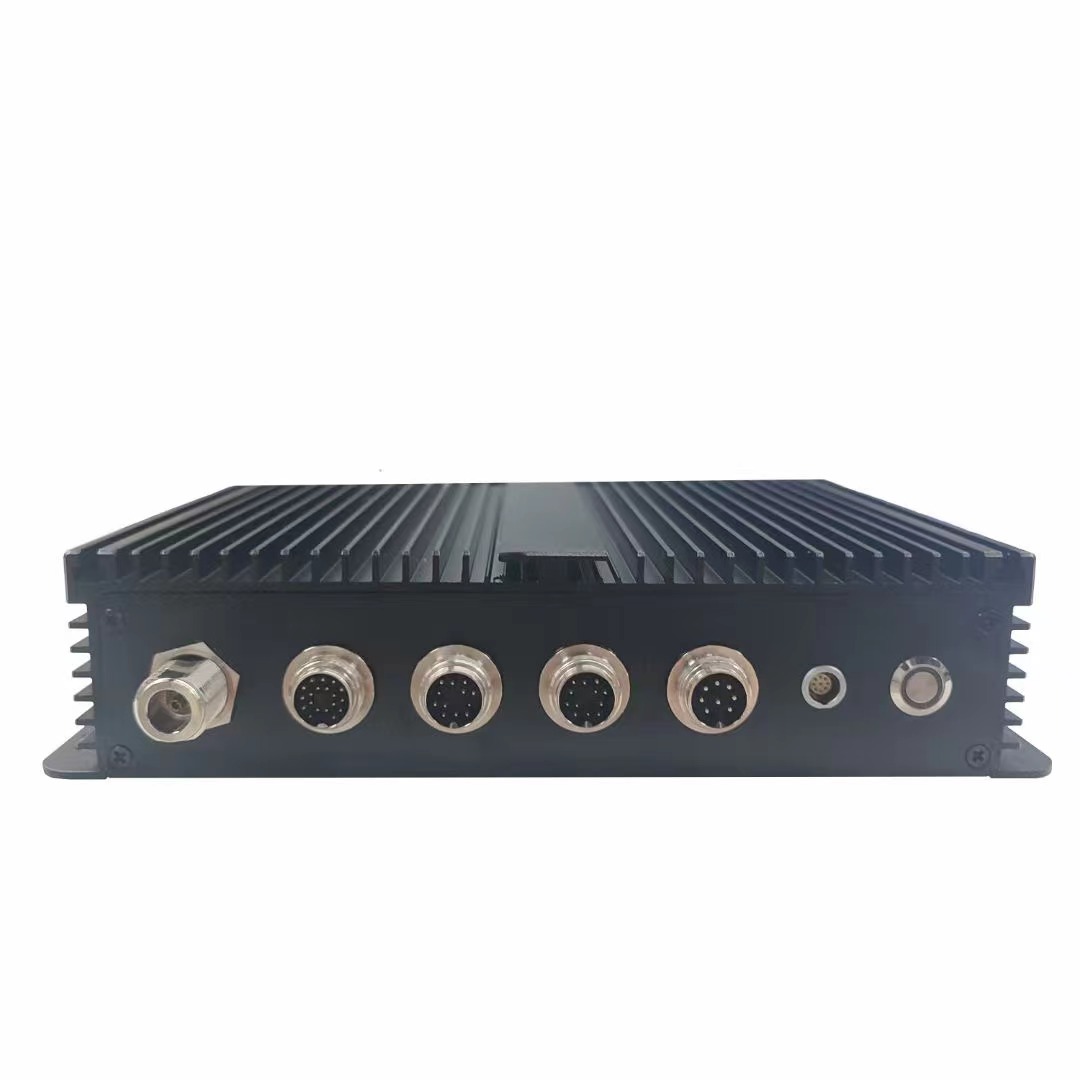

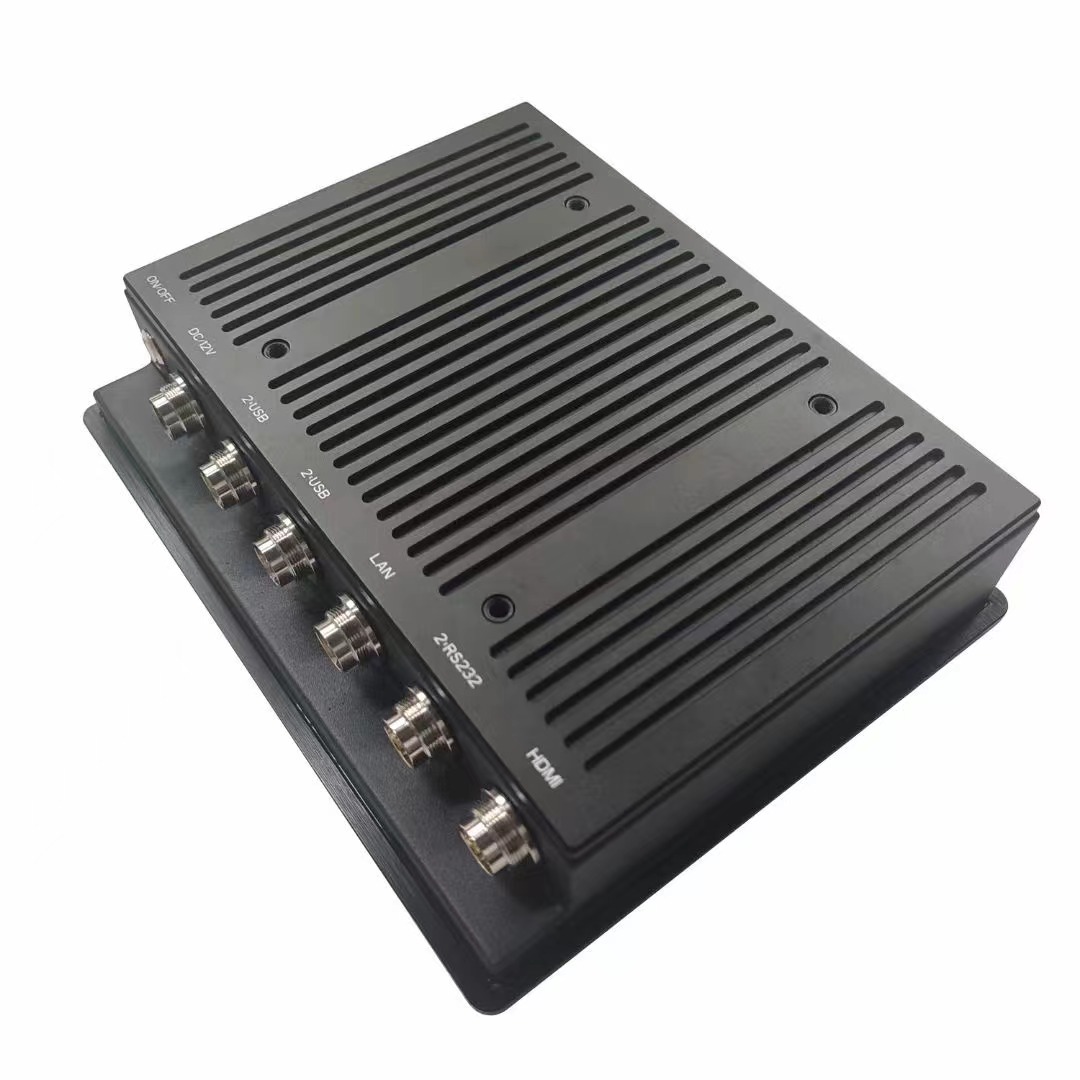

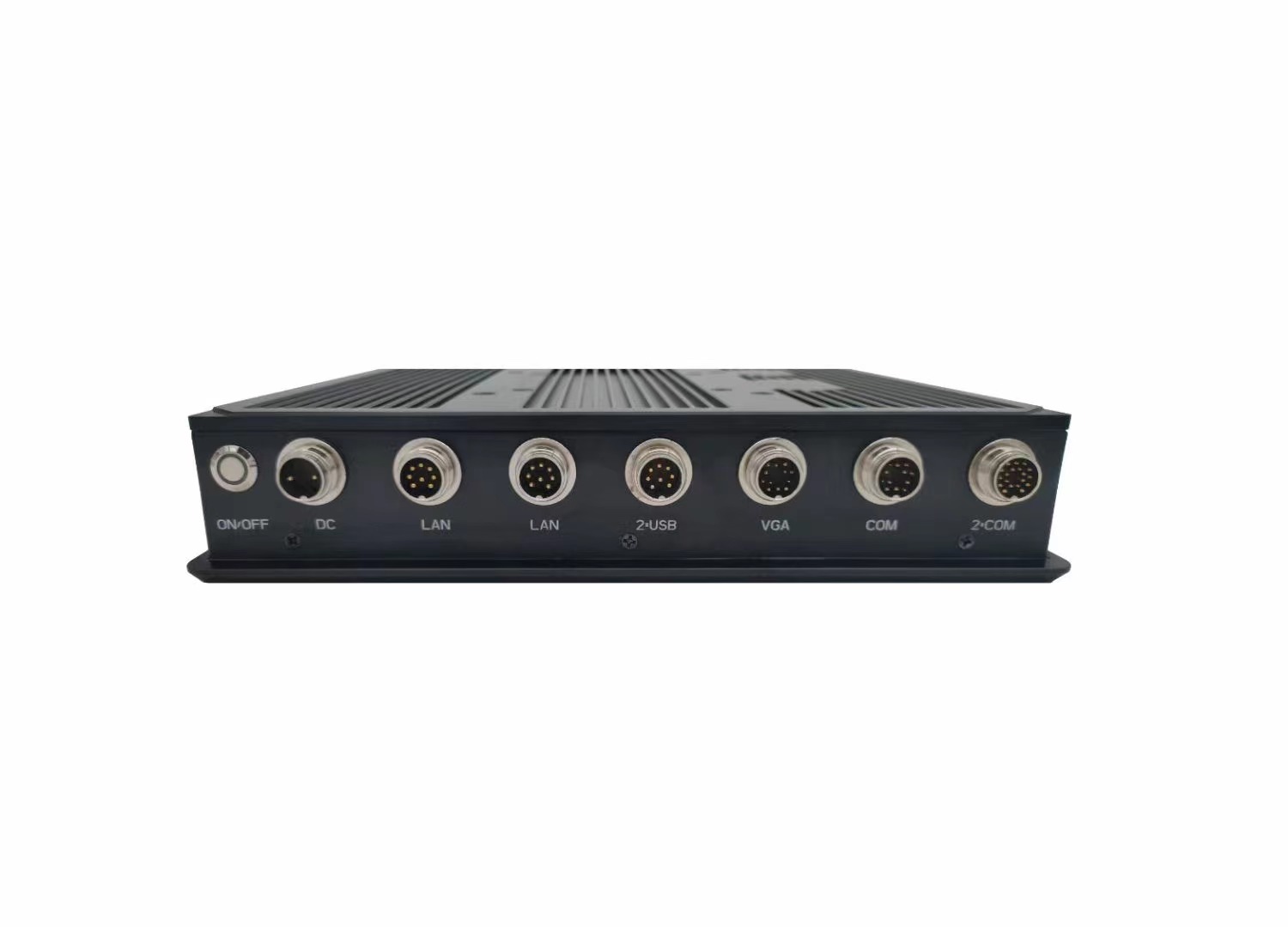

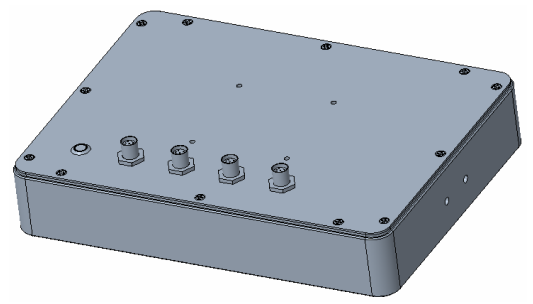

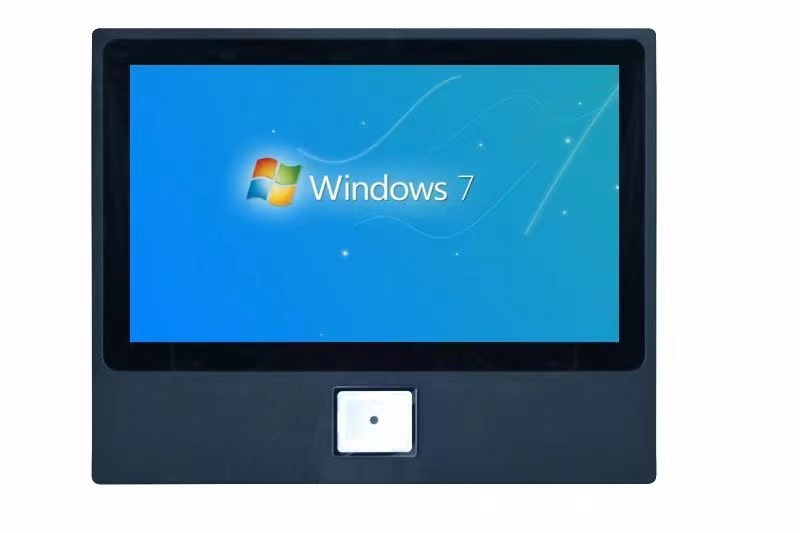

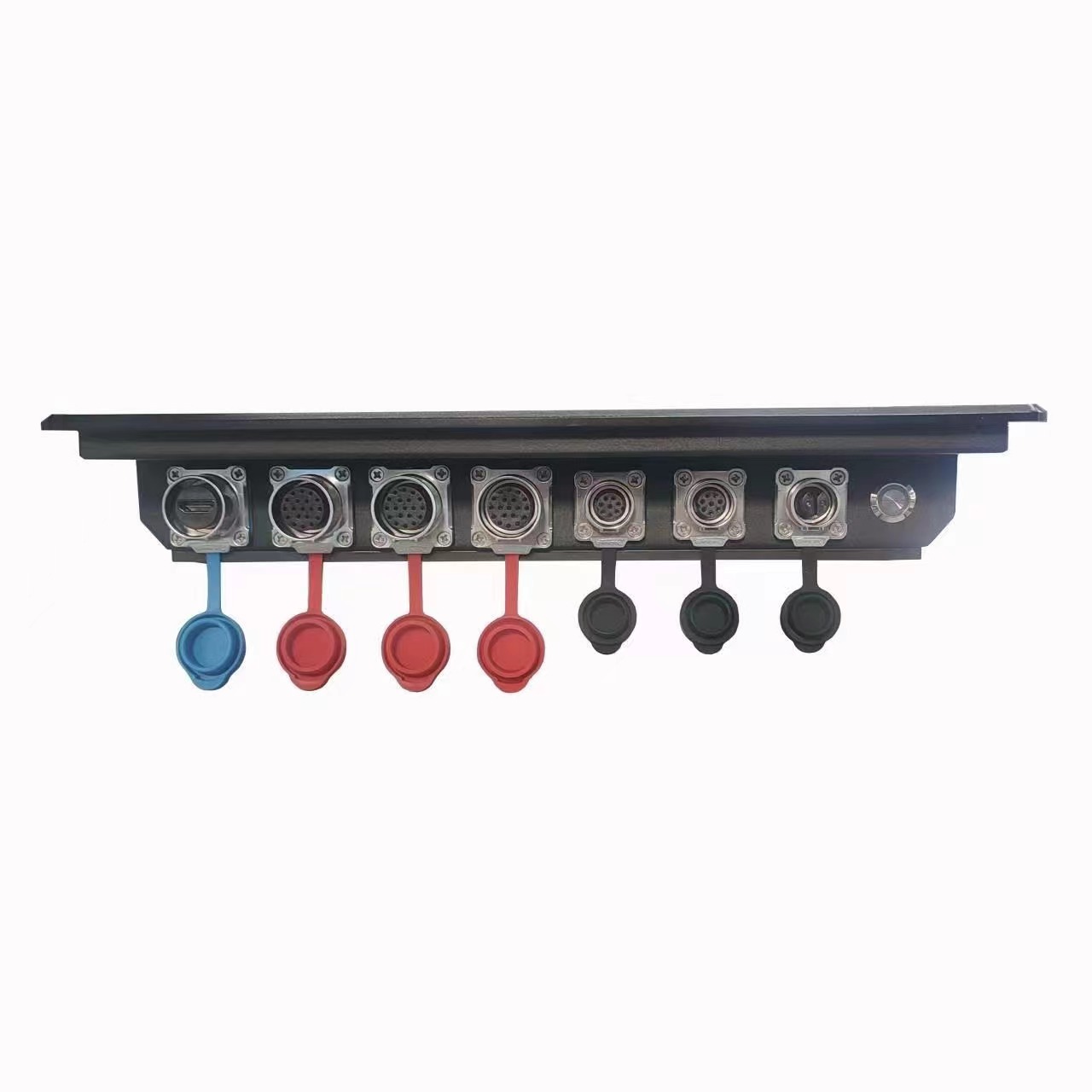

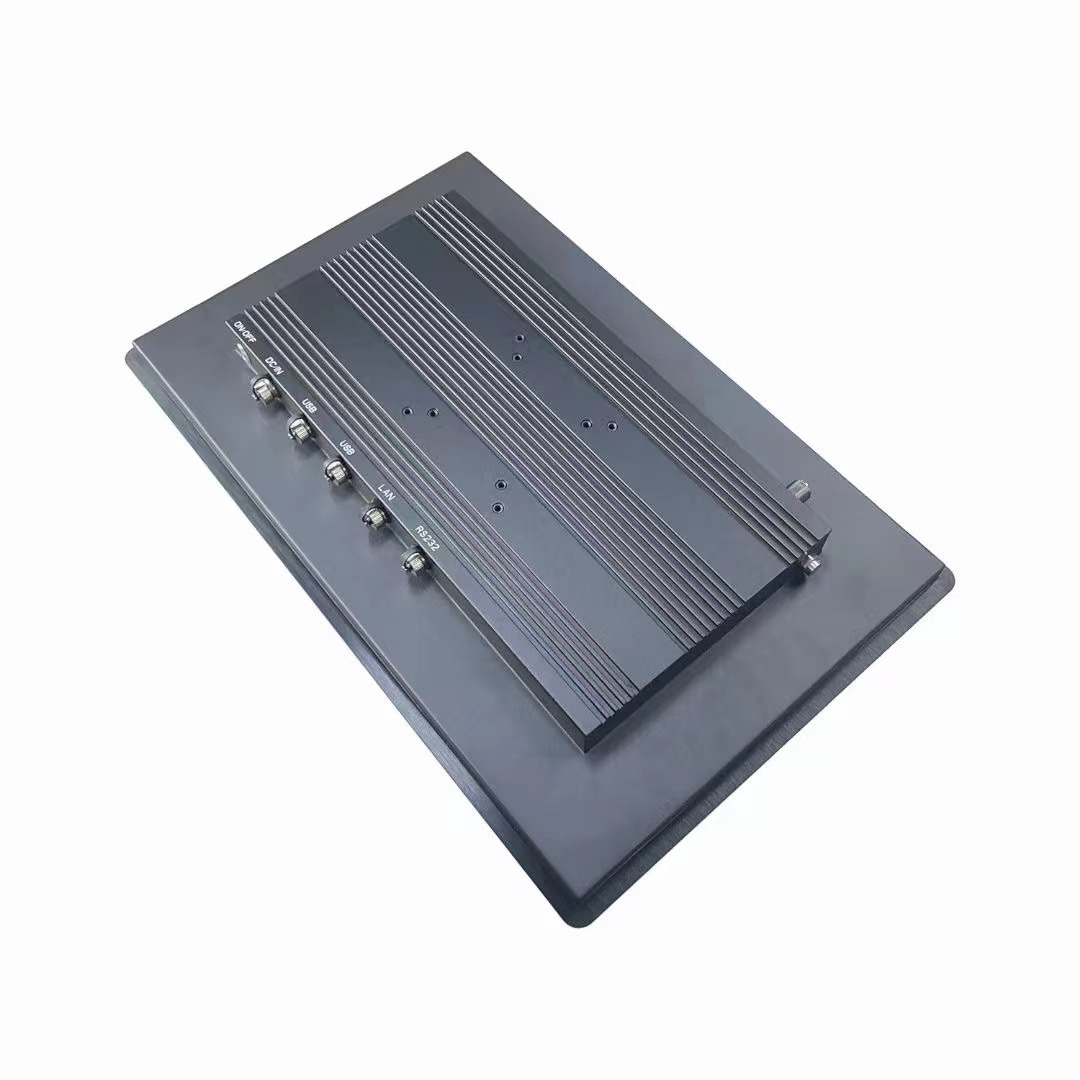

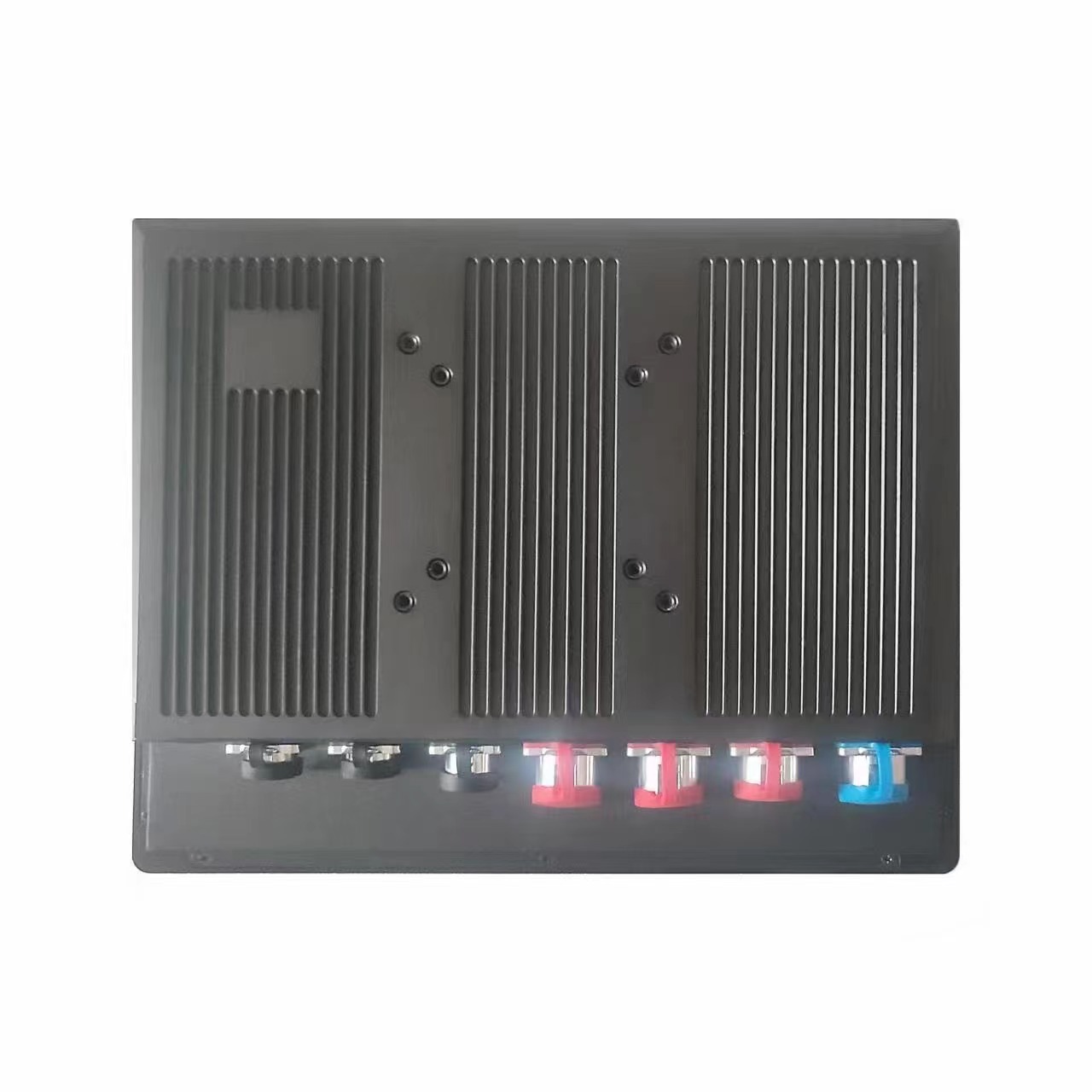

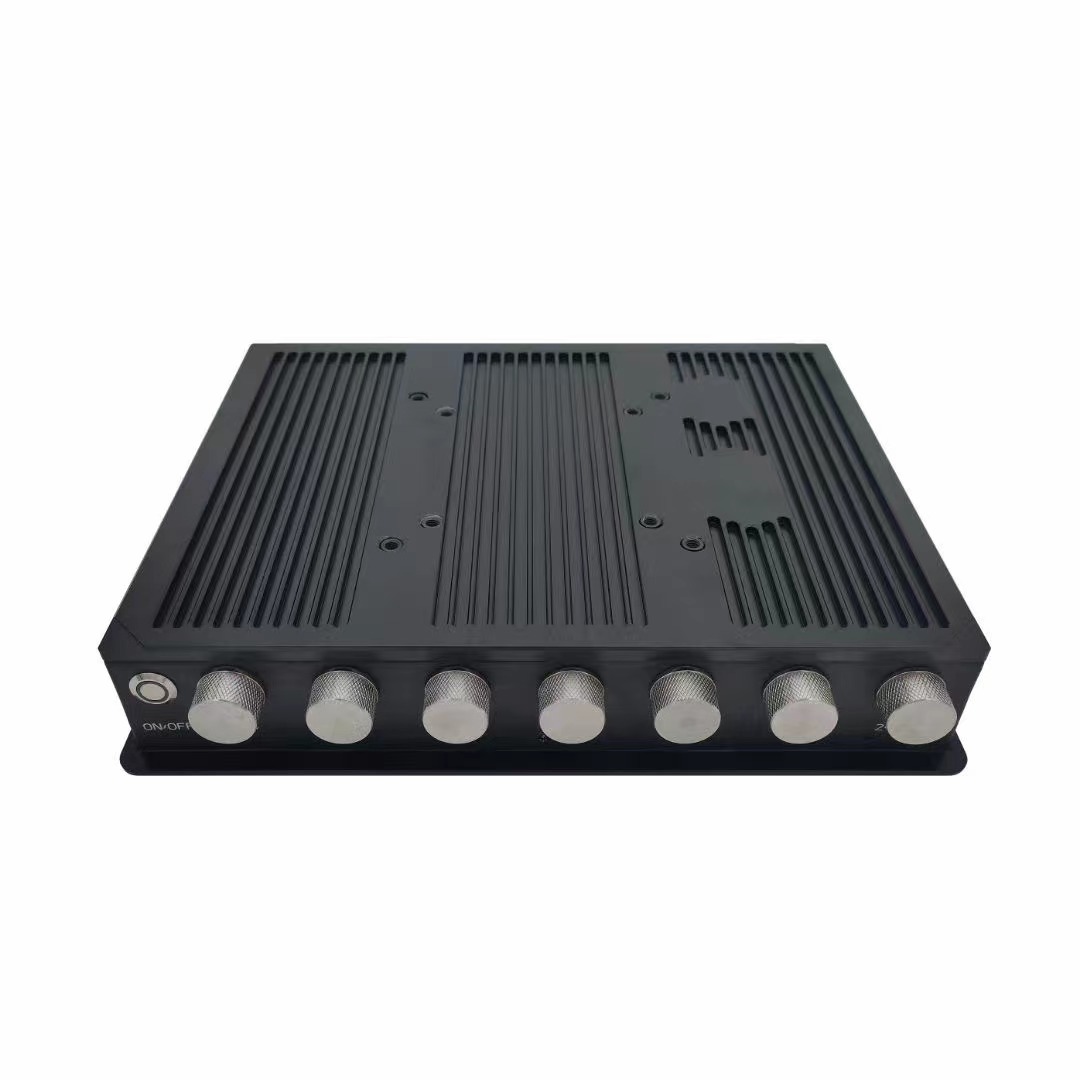

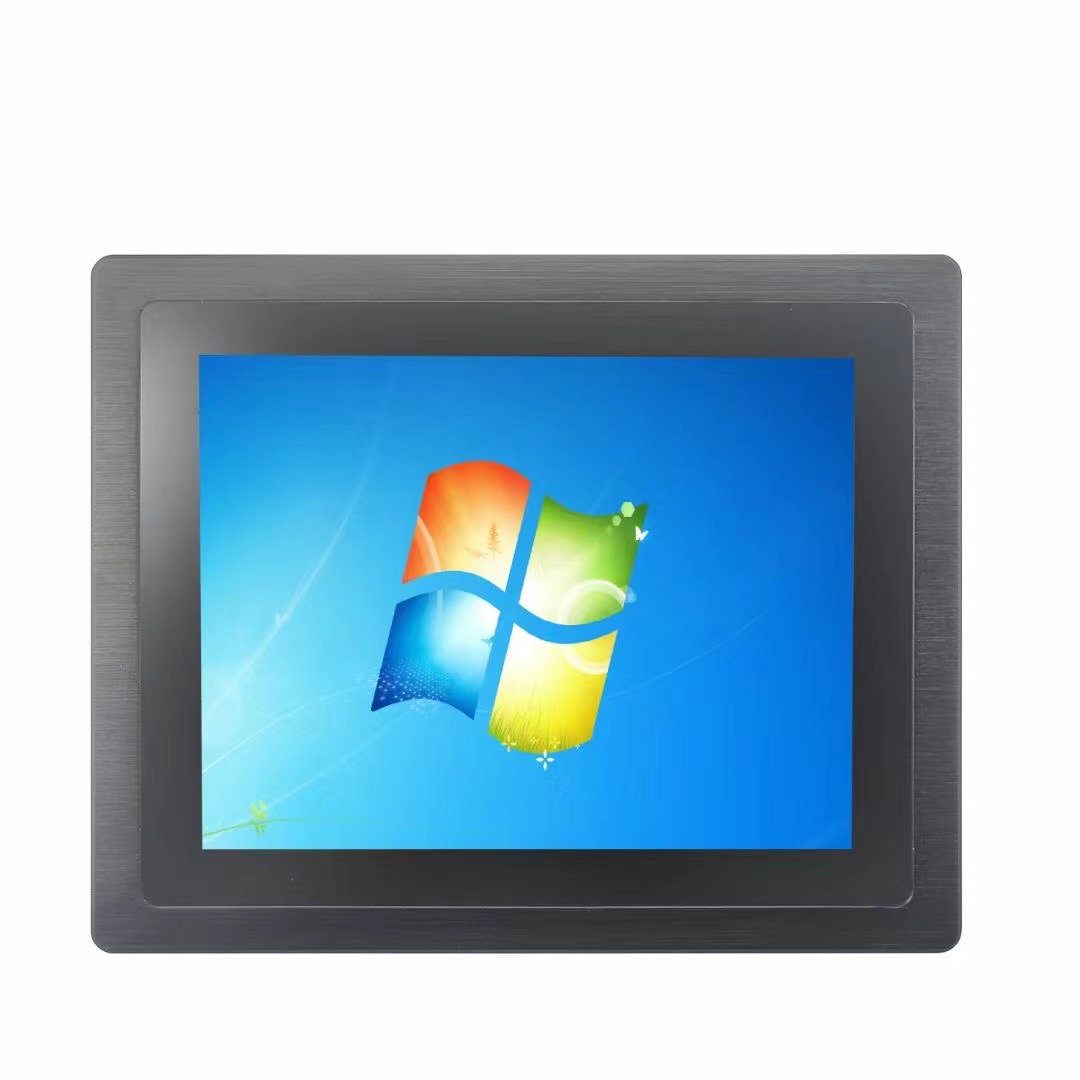

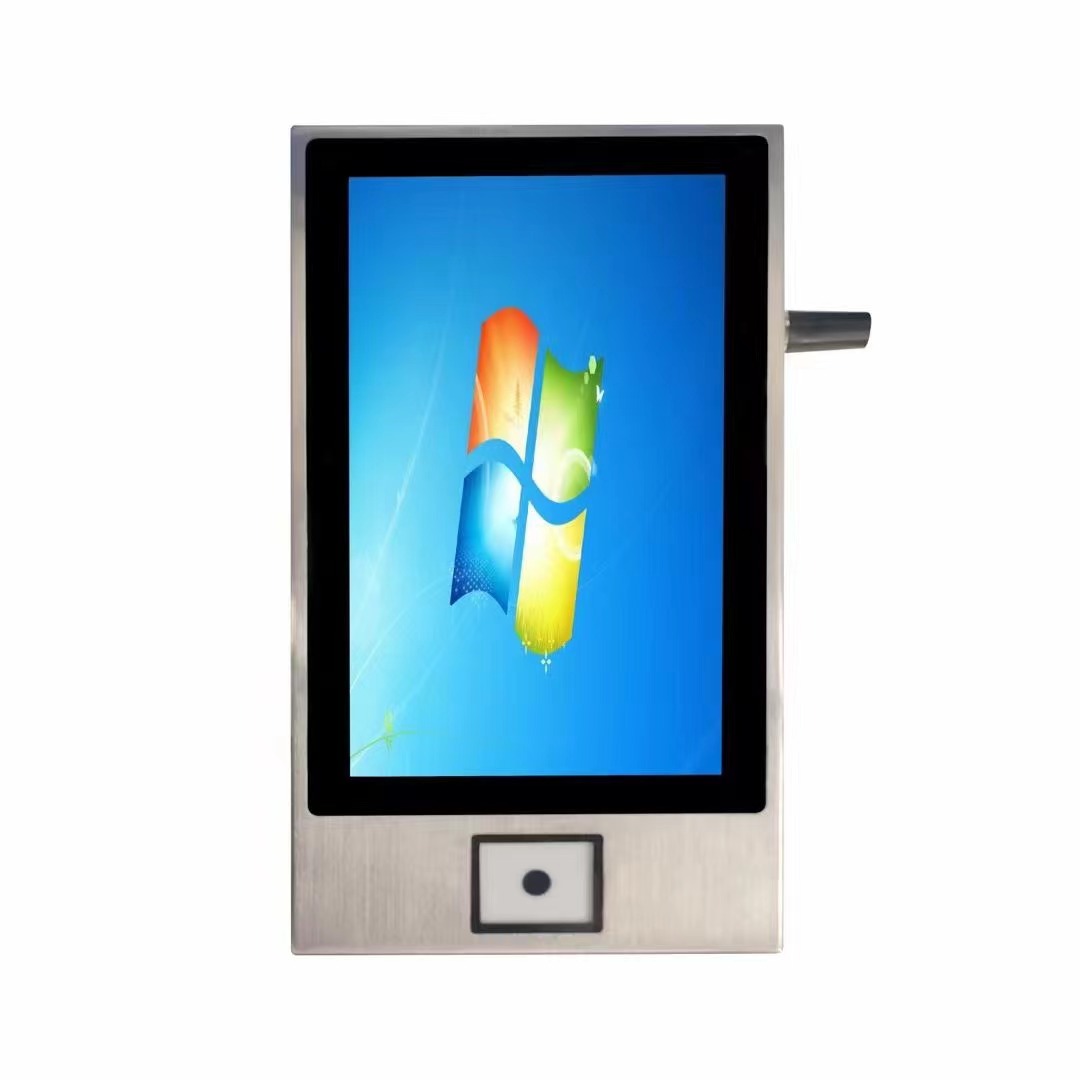

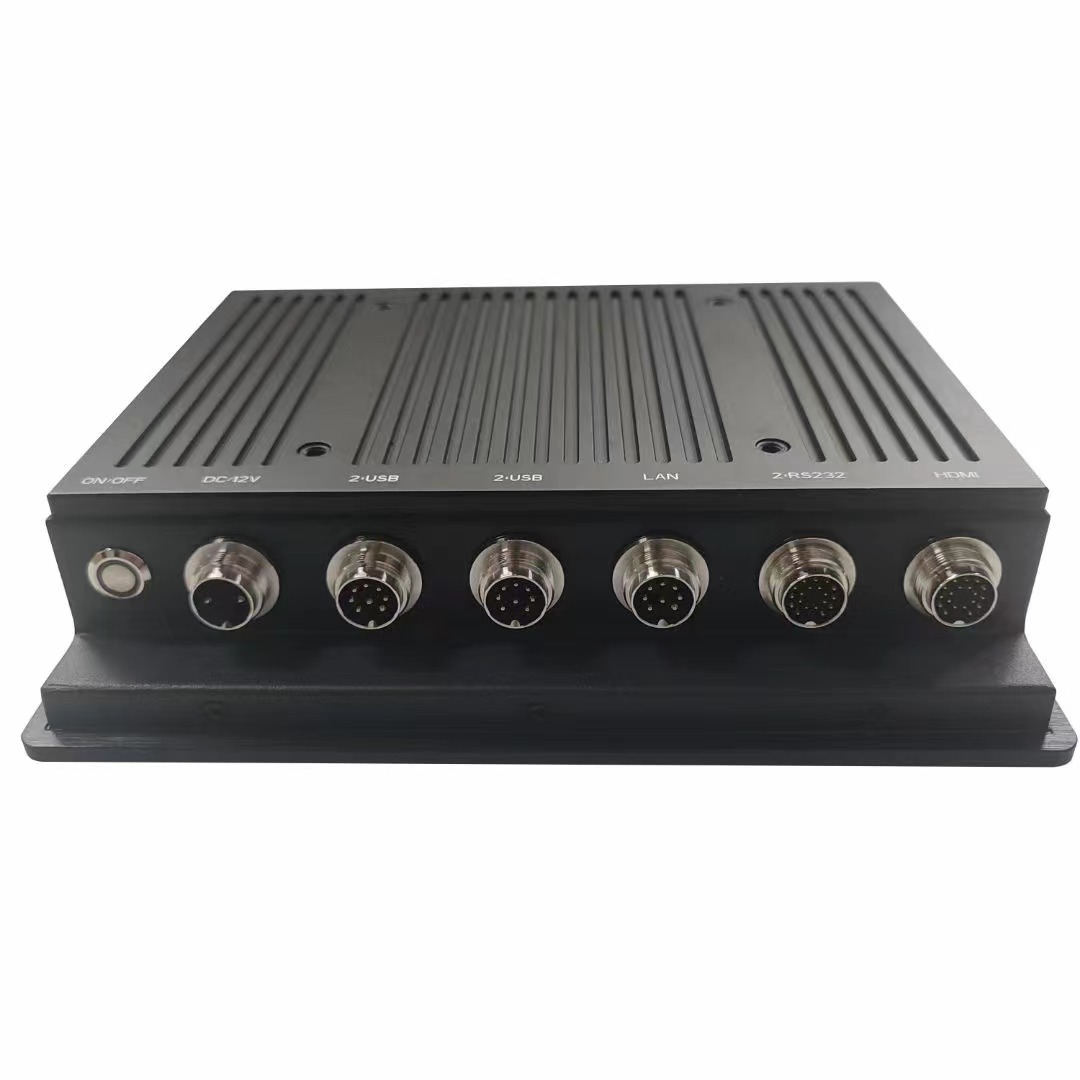

product picture

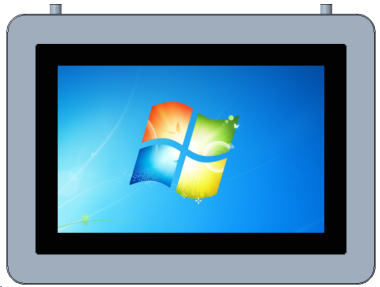

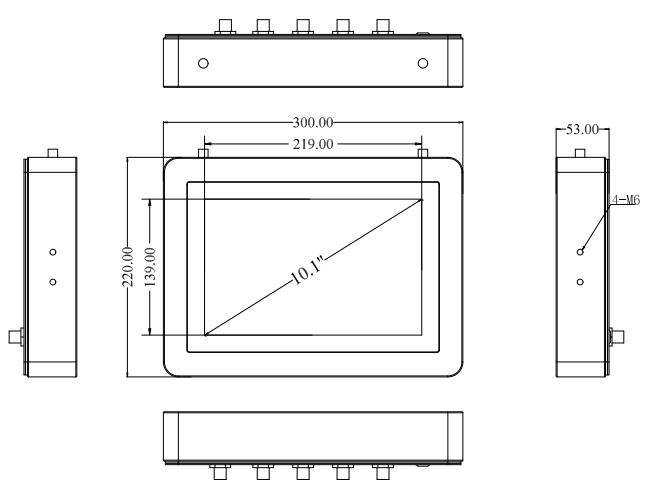

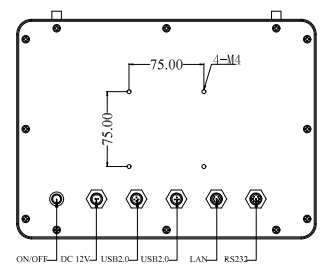

product size
