43 INCH HIGH BRIGHTNESS LCD PANEL
MODEL NO.:RT-O01

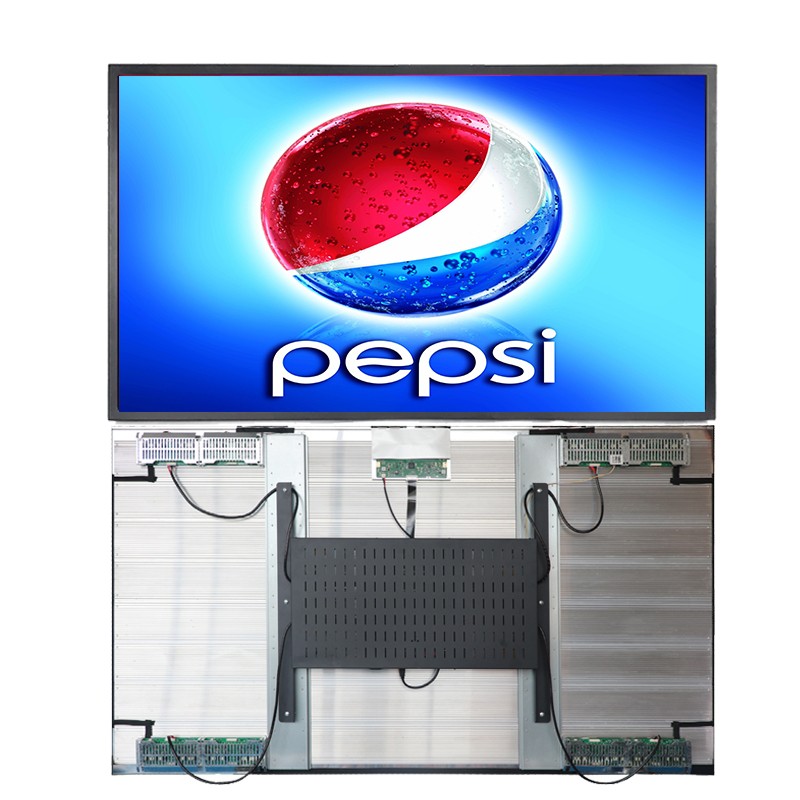

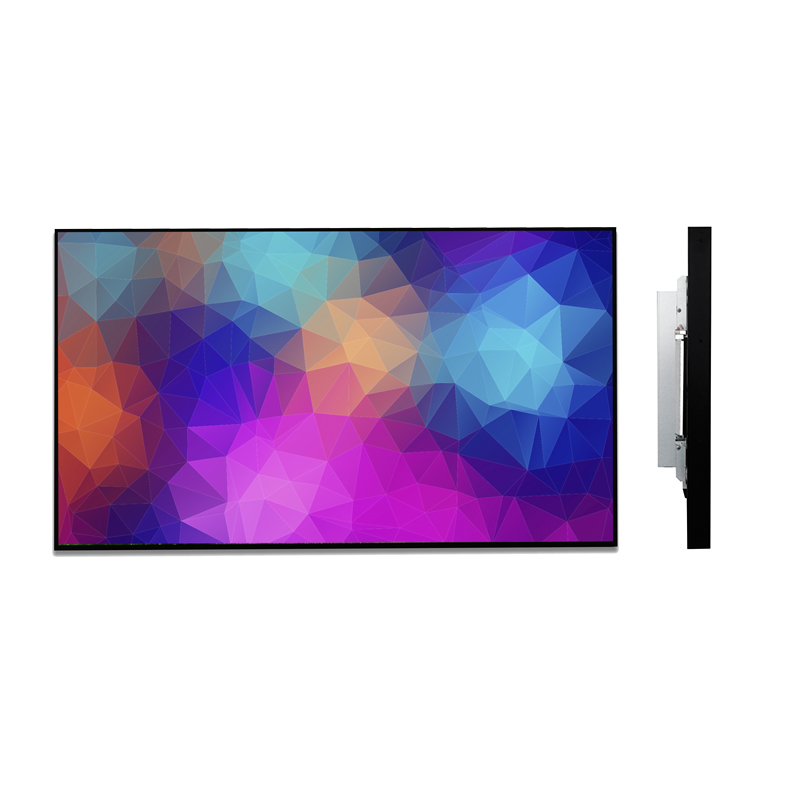

1.Picture：

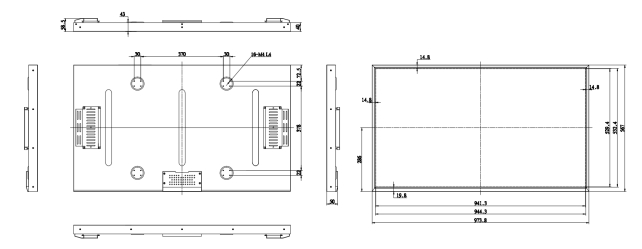

2.Dimension：
3.LED -Backlight connection：
4.Feature：
Patented structural design, with excellent heat dissipation performance and structural strength.
Direct light-emitting mode, super Opencell compatibility, can achieve full size, compatible with all manufacturers.
Using an all-metal structure, the LB substrate also uses metal materials with high thermal conductivity to maximize heat conduction, thereby reducing the overall operating temperature and meeting higher environmental requirements.
The LED light source has higher light efficiency and can be easily viewed under direct sunlight
5.LCD PANEL PARAMETER：
Item | Detail | Spec. |
|
|
|
| Module model | BOE panel |
Basic |
|
|
Operating temperature | -20℃~60℃ |
|
|
|
| storage temperature | -20℃~60℃ |
|
|
|
| Panel size | 43'' |
|
|
|
| Physical resolution | 1980(RGB）×1080（FHD）/3840x2160 |
|
|
|
| Aspect ratio | 16:9 |
|
|
|
|
|
|
| Module weight | 11.2 KG |
|
|
|
Structure | Display area | 941.2×529.4mm (H×V) |
|
|
|
| Specification (width×height×thickness) | 980.6 mm×568.6mm×29.9 mm |
|
|
|
| high brightness | 2500 cd/㎡ |
|
|
|
| Contrast | 1300:1 |
Light feature |
|
|
Grayscale response time | 6.5 ms |
|
|
|
| Wide viewing angle | 178°178° |
|
|
|
| Display color | 1.07B(8-bit) |
|
|
|
|
|
|
| Signal subcategory | LVDS(4 ch, 8-bit) |
|
|
|
Signal connector | Panel voltage | 12.0 V |
|
|
|
| Panel current | 0.64/0.77A (Typ./Max.) |
|
|
|
| Interface Type | Terminal |
|
|
|
|
|
| type of light source | WLED |
|
|
|
| Light source life | 50000 h |
| Interface Type | Terminal |
Backlight | Interface model | PHC-14AW 14PIN/2.0MM |
| Backlight circuit | LED driver |
| Backlight circuit | 24+5V(Input voltage) |
| Backlight power | 145 W |
Interface | HDMI IN | 1XPcs |
VGA In | 1xPcs |
|
|
|
