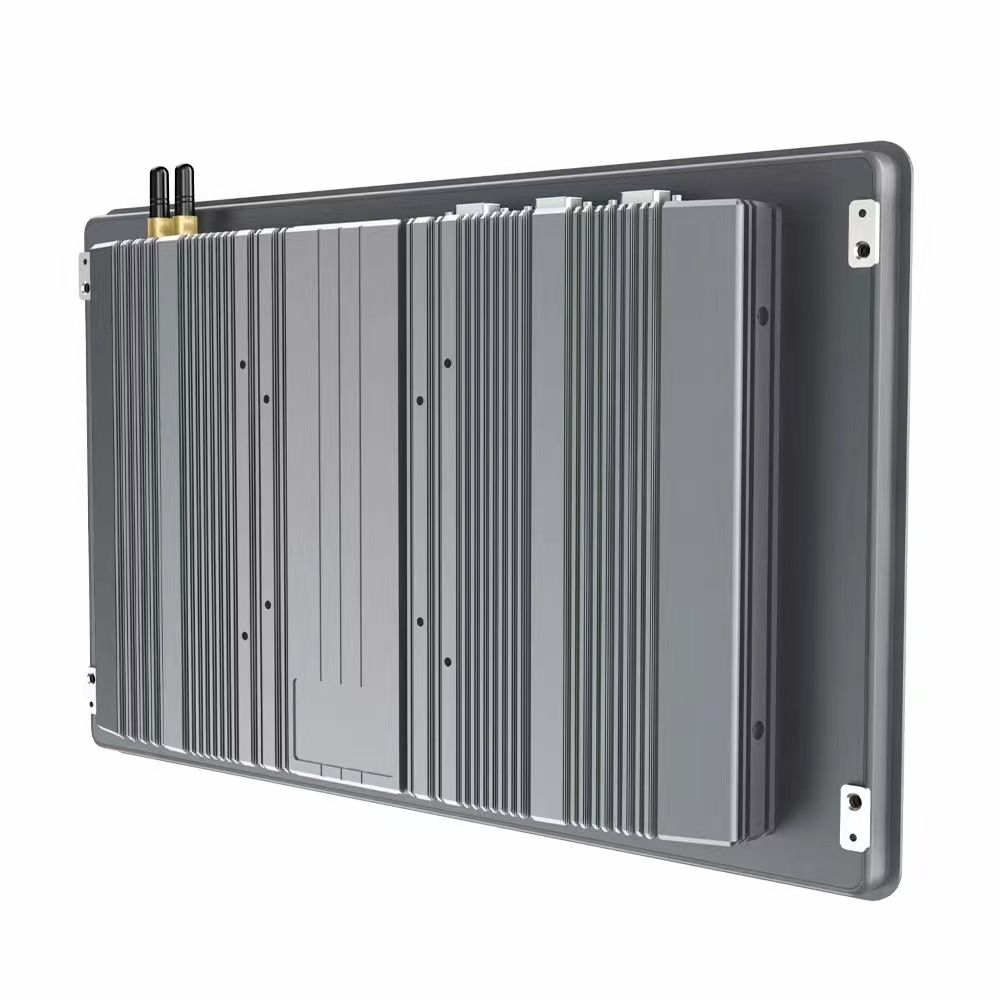

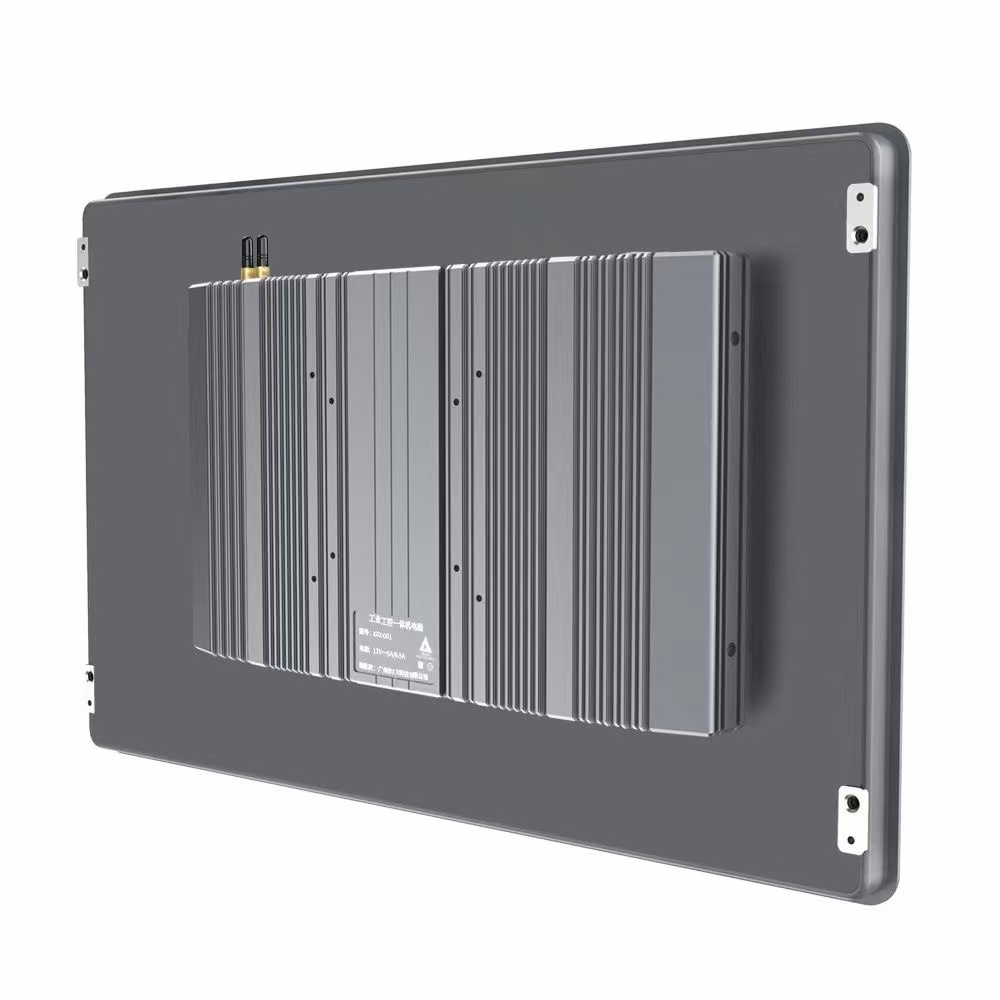

I. Product overview:
Product introduction:
The fully enclosed industrial touch all-in-one machine/display is a new type of human-computer interaction equipment born for industrial manufacturing. The touch screen used has many advantages such as sturdiness and durability, fast response, space saving, and easy communication. Users can quickly get the information they want by lightly touching the machine screen with their fingers, so as to collect and control various data devices.
Features:
1. Appearance: fully enclosed aluminum metal structure, silent heat conduction, efficient heat dissipation; front covered with toughened glass, supporting IP65 waterproof;
2. Touch: Projected 10-point capacitive touch, millisecond response, stable and non-drifting;
3. Display: new LED A-standard LCD screen, high-definition resolution, brightness ≥250cd/m2, and delicate colors;
4. System: compatible with touch display, Android touch all-in-one machine, computer touch all-in-one machine;
5. Performance: Each complete machine has undergone baking machine aging, temperature and humidity test, static electricity, vibration, touch click, display and other inspections to ensure stable quality;
6. Material technology: private die-casting all-aluminum one-piece back cover, the whole machine is lighter, thinner, more beautiful, firm, and the body is painted with high temperature, corrosion and oxidation resistance;
7. Optional interfaces: multiple network ports, multiple USB ports, multiple serial ports (TTL, 232, 485), GPIO, LPT, etc.;
8. Support customization: customizable appearance, color, LOGO, camera, card reader, printer, fingerprint recognition, QR code, etc.;
9. Installation method: support multiple installation methods such as wall-mounted, embedded, desktop bracket, etc., self-starting after power on, convenient and efficient;
Application scenarios:
Suitable for factory production lines/workshops, industrial automation, machine tool CNC abrasive tools industry, smart medical treatment, medical testing, self-service express cabinets, self-service vending machines, edge computing, MES systems, Internet of Things, monitoring systems, security access control, electronic shift cards, and labor Smart, cash register, inquiry machine, number taking machine, etc.
II.Parameter：
1.Device parameter：
Screen panel | Size | 7 8 8.4 10.1 10.4 12.1 13.3 13 15 15.6 17 18.5 19 inch
13 15 17 19 inch
13 15 17 19 inch |
Resolution | 1920*1080 | Ratio | 16:9 |
Type | IPS LED A grade original panel |
View angle | 89°/89°/89°/89°(L/R/U/D) |
Brightness | 1000cd/m2（customized brightness available） |
Display size | 293.472 × 165.078 mm |
Contrast | 1200:1 | Color | White,black |
Refresh rate | 60Hz | Response time | 2ms |
Touch | Touch type | PCAP Touch | Touch Pppoinpopoints | 10 points |
Touch resolution | 4096*4096 | Reaction time | 5ms |
Computer response | System automatic | life | 60milion |
hardness | Mod 7-level explosion-proof tempered glass |
Case | Body craft | Fully enclosed aluminum alloy process |
Installation method | Wall mounted | Size | 100mm*100mm |
Embedded | Size | 378mm*297mm |
color | Silver /black |
Power supply | Input power | AC 100V～240V 50/60Hz |
Output power | DC 12V 5A |
Power | Android power consumption | ＜3W | Working power | ＜5W |
Computer power consumption | ＜5W | Standby | ＜0.5W |
Speaker power | 5Ω 3W |
N.W. | 3.8Kg | G.W. | 4.2kg |
2.Configuration：
Android | model | RK3288 | RK3399 |
Processor type | Coertex-A17 Quad core 1.8GHz | Dual Coertex-A72+Quad Coertex-A53 2.0GHz |
RAM | 2G/4G（optional） | 2G/4G（optional） |
ROM | 16G/32G（Optional） | 16G/32G/64G/128G（optional） |
Operating system | Android6.0.1/Android7.1 | Android7.1 |
The internet | WiFi/Earthnet 4G for optional |
Serial port | TTL/232/485 |
PC | CPU | J1800 CPU 1.8GHz/J4125 CPU |
RAM | 2G DDR3 |
hard disk | 32G SSD |
system | Windows7 |
Graphics card | Integrated Graphics |
Network card | Adaptive 1000M network card+WiFi |
Optional interface | RS232/RS485/Extra RJ45 port/multiple USB/GPIO/LPT |
Optional PC | CPU | J1800/j1900/I3/I5/I7 |
Gen | 3rd/4th/5th/6th/7th/8th/9th/10th |
RAM | 2G/4G/8G/16G |
hard disk | 32G/64G/128G/256G/512G/1TB（SSD/HDD） |
system | Windows7/Windows10/XP/Linux |
Other options | Three Netcom 4G Module/Dual Band WiFi/Bluetooth/GPS |

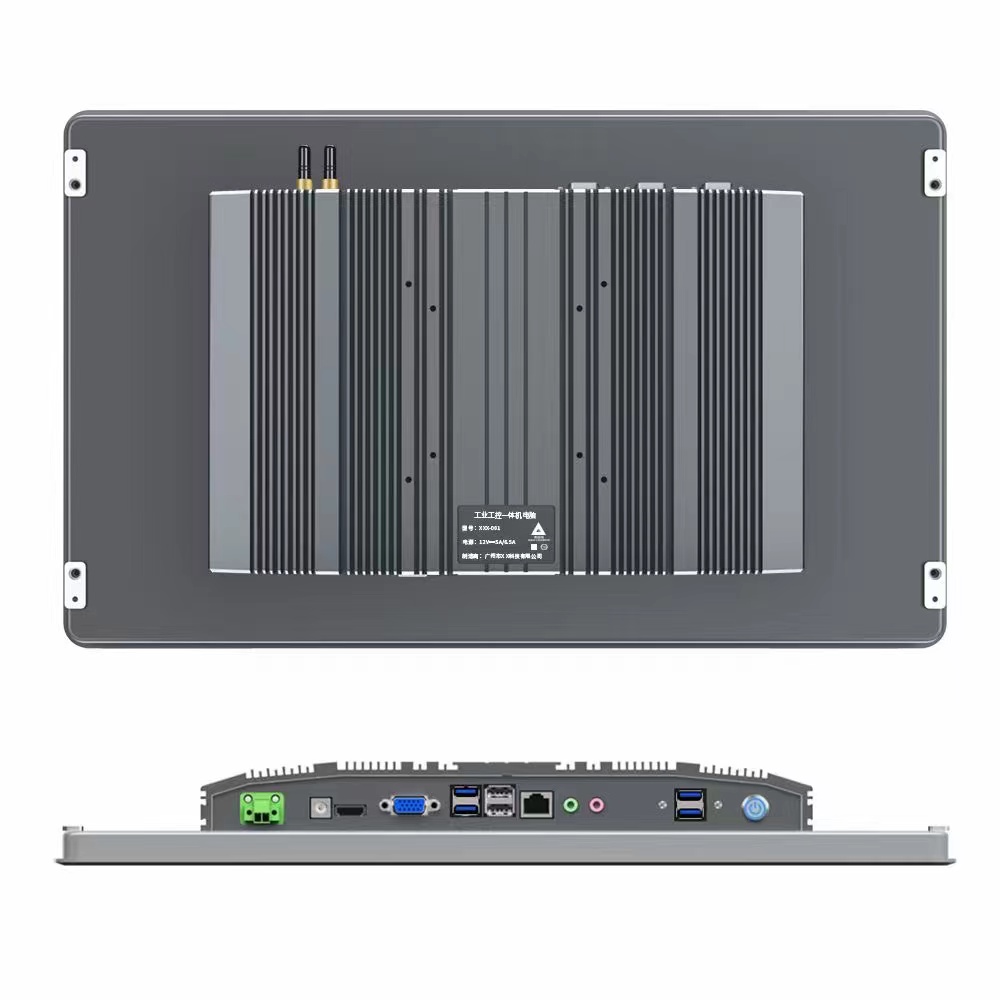

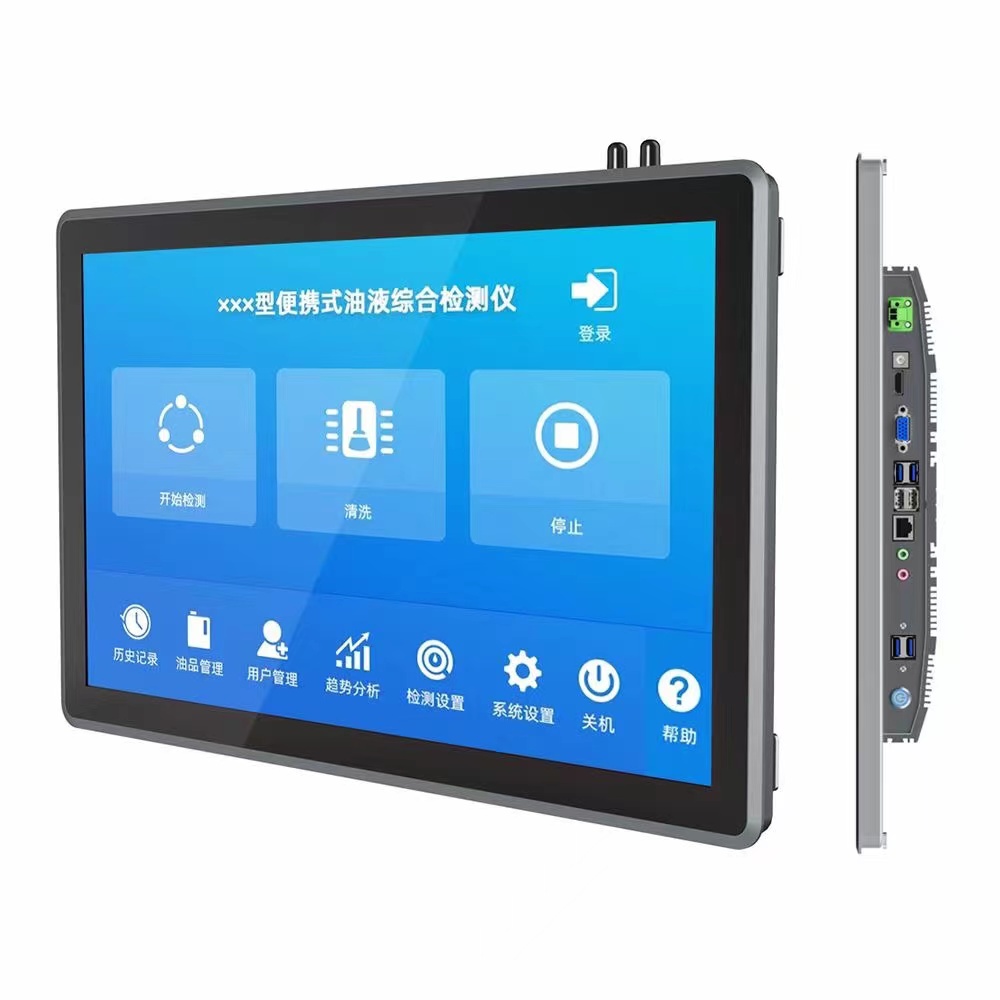

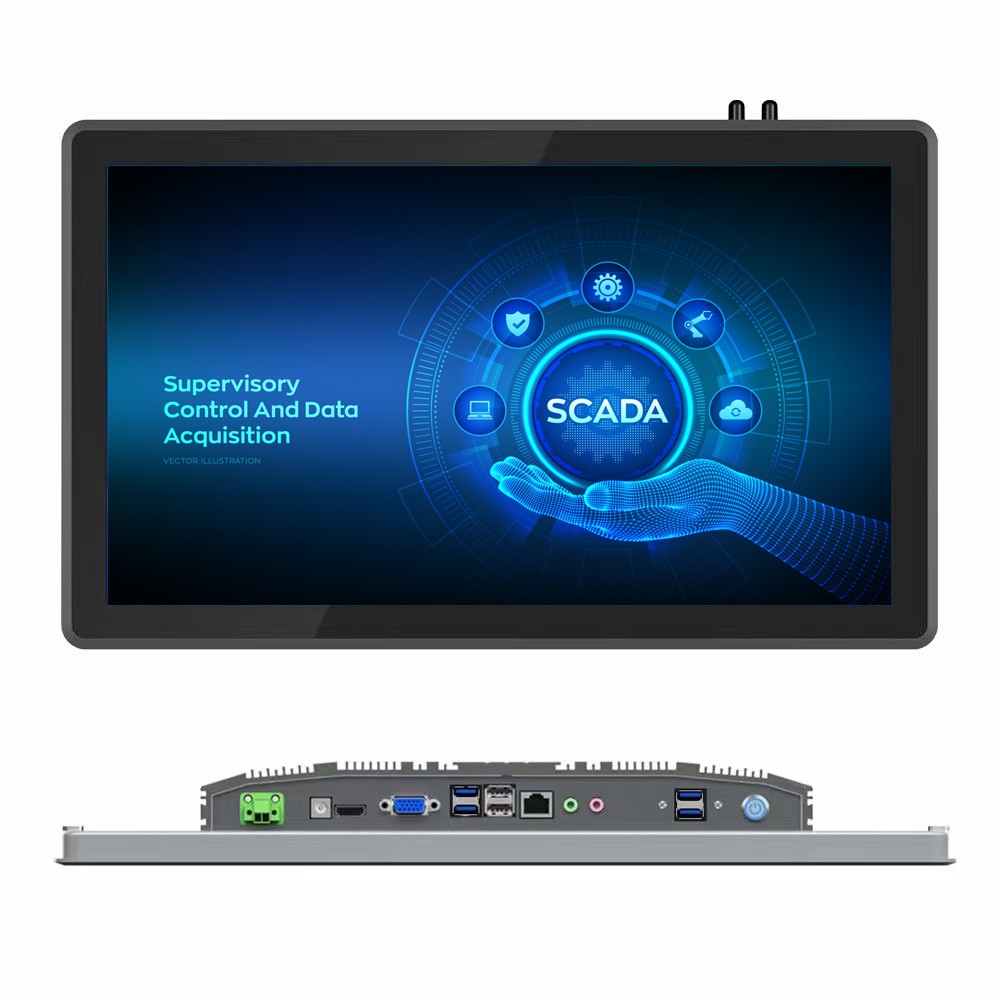

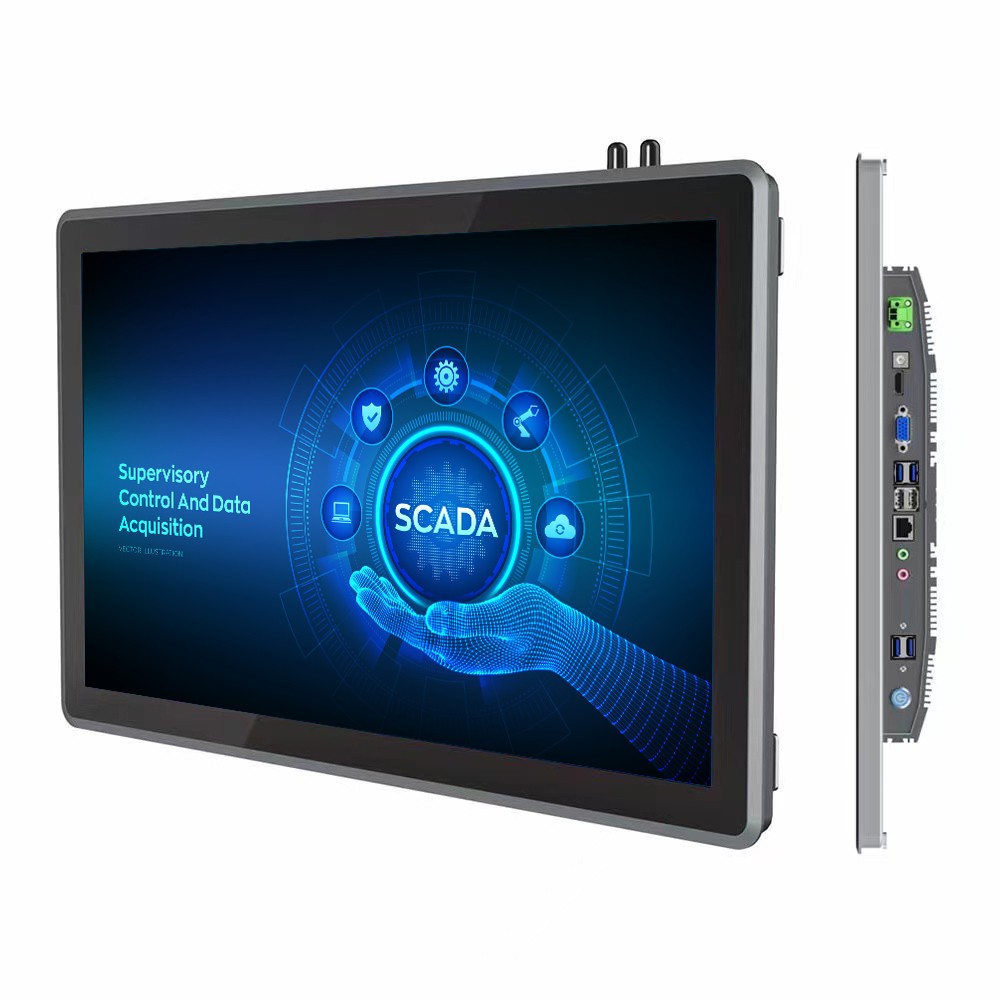

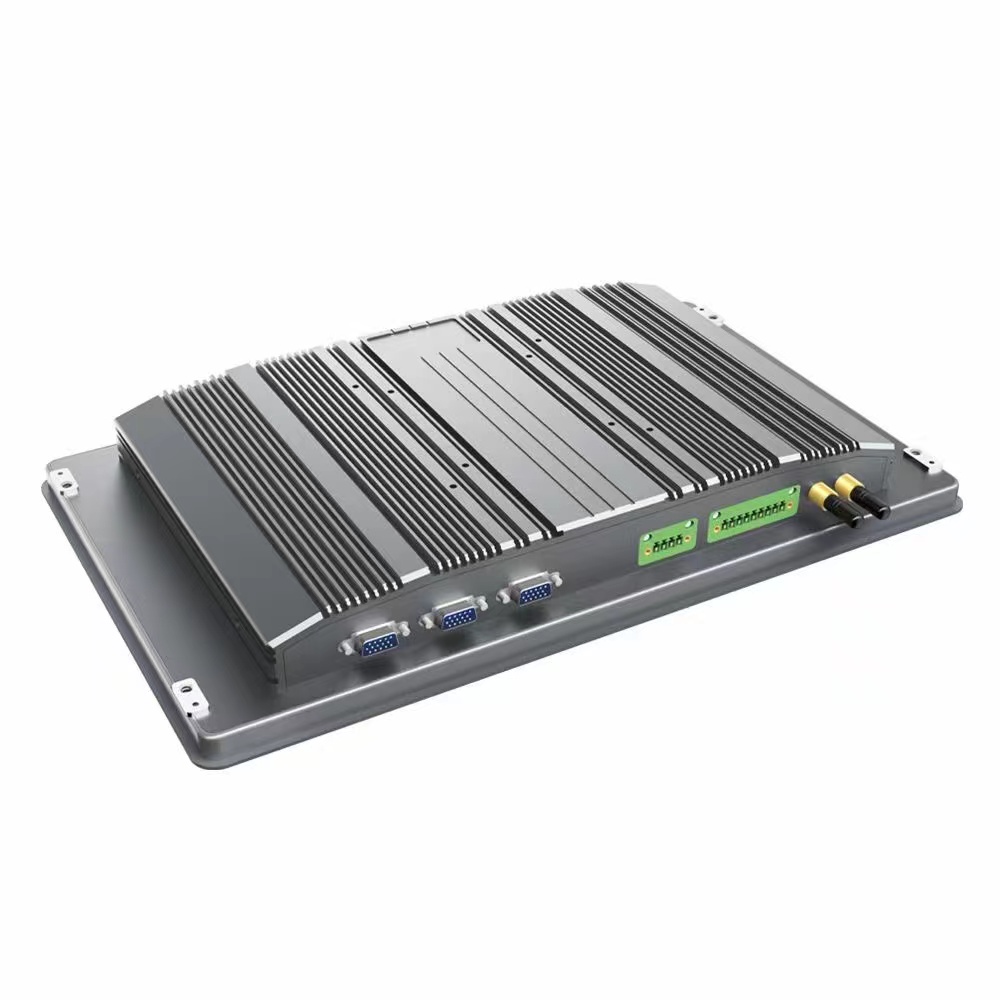

3 .Interface：
Touch monitor interface | DC12V | 1 | HDMI input | 1 |
USB for Touch | 1 | VGA input | 1 |
Headphone jack | 1 |
|
|
|
Android interface | DC12V | 1 | TF/SD | 1 |
USB for Touch | 2 | Wifi | 1 |
Headphone jack | 1 | RJ45 | 1 |
HDMI Output | 1 | Option：RS TTL/RS232/RS485 |
|
PC interface | DC12V | 1 | Wifi | 1 |
USB for Touch | 4 | RJ45 | 1 |
VGA output | 1 | Audio | 1 |
HDMI output | 1 | RS232 | 2 |
III.Drawing
IV.Installation
